Materials:
- Gear: 2024 aluminum, anodized before cutting
- Hub: 303 stainless steel
Available in stock from 32 D.P. To 120 D.P. / 0.8 to 0.2 module,
1 inch to 6½ Inch O.D.
Available on request:
- Agma quality 12+
- 14½° or other pressure angle
- Smaller or larger diameters
- Stainless steel gears
- Other bore sizes
- Heavy-duty assemblies
- Locknut-style hubs
- Smaller or larger face width
Specifications

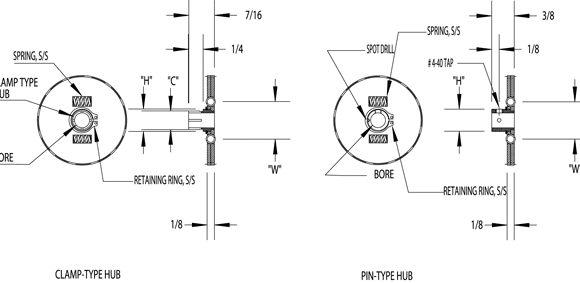

| BORE* | “C” DIMENSION |
|---|---|
| .1250 | .188 – .003 |
| .1875 | .250 – .003 |
| .2500 | .312 – .003 |
*BORE TOLERANCE: +.0003, -.0002
| O.D. RANGE | “H” DIA. | “W” B.C. |
|---|---|---|
| 1” – 2” | 3/8 | 5/8” |
| 2” – 2½“ | 9/16 | 1½” |
| 3½” – 6½” | 9/16 | 2-3/8” |
